78A Beechgate Crescent SouthGate Business Park.

78A Beechgate SouthGate Umbogintwini, Amanzimtoti

Background

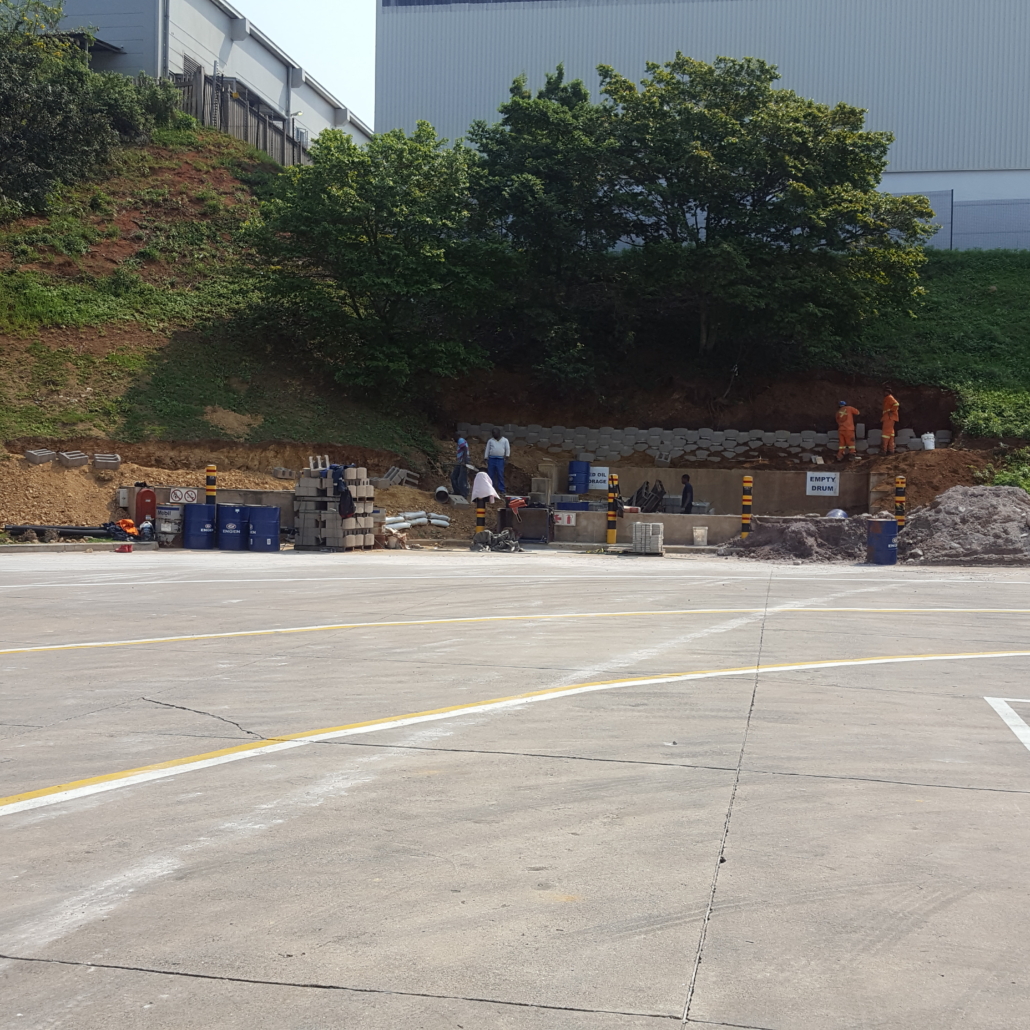

The facility situated at 78a Beech Gate Ave inside South Gate Industrial Park is leased to Engen Petroleum is used as queuing terminal for bulk fuel tankers. Slope on west side had been constructed at 35⁰ angle of repose had remained stable since land development back in the early 1980s. On 10 June 2017, Durban’s heaviest storm in history causing damages estimated to be R1.6 billion . Large mass movement on this slope. Dson Industries had been jobs in the area and was approached by Mr. Mike Naidoo of Facility manager to advise on effective solution and cost to restore order. On our first site visit as we always do thorough site investigation. Dson Industries was able to to identify water seepages from a Storm Water Manhole located at the head of the slope on the neighbour’s side .

Project Background

Project: DryStack Segmental Retaining Wall

Sub Contractor: Mike & Sons General Construction

Location: 78A Beechgate Cres SouthGate Business Par, Umbogintwini,

400

TB 500 Blocks

400

Sliders

tons
of Backfill

G7
Backfill materials

Material

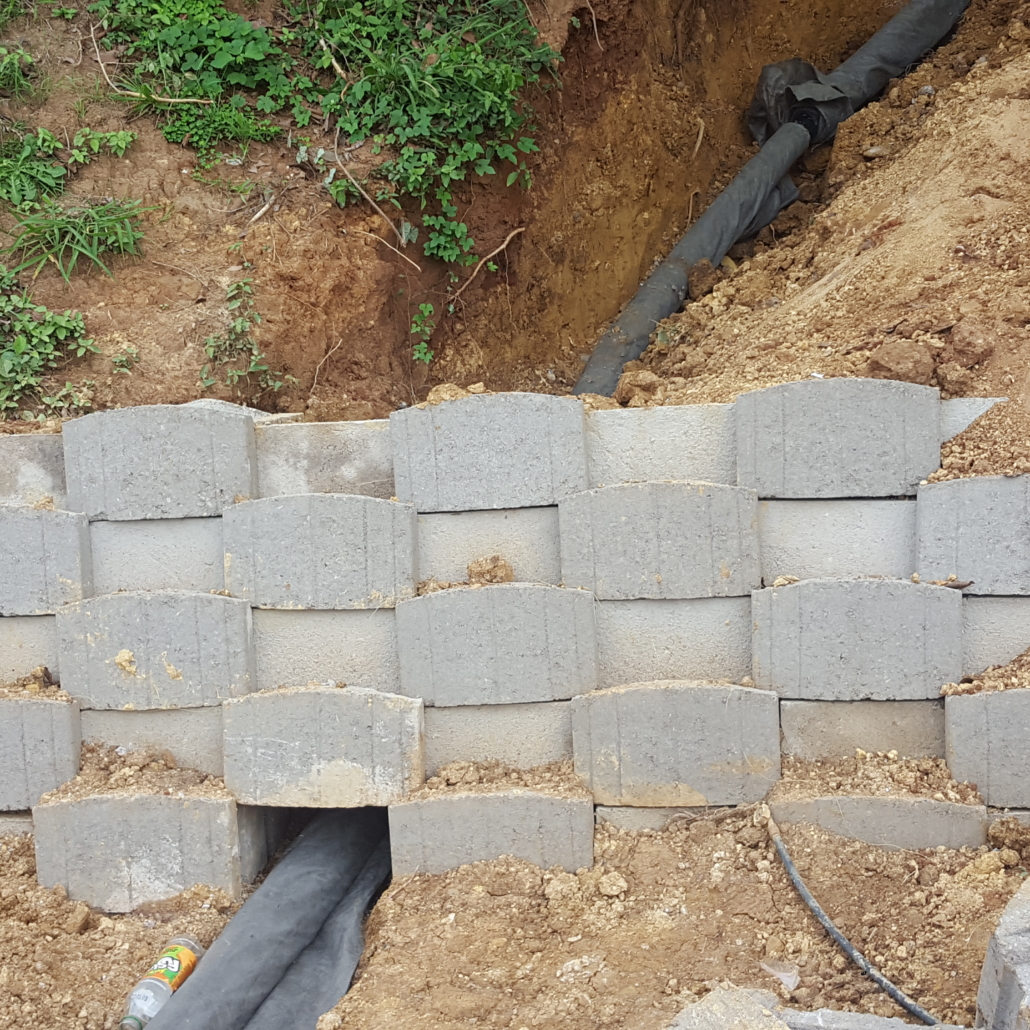

Block: TB 500 supplied with sliders

Geo-synthetics: A4 Biddm Geo-textile Fabric.

Drainage: KayTech 110mm Flo Drain Pipe

Concrete: 25 MPa

Backfill: G7 Seven

Challenges

Site Conditions.

Complete removal of the sliding mass,

No mobile phones permitted

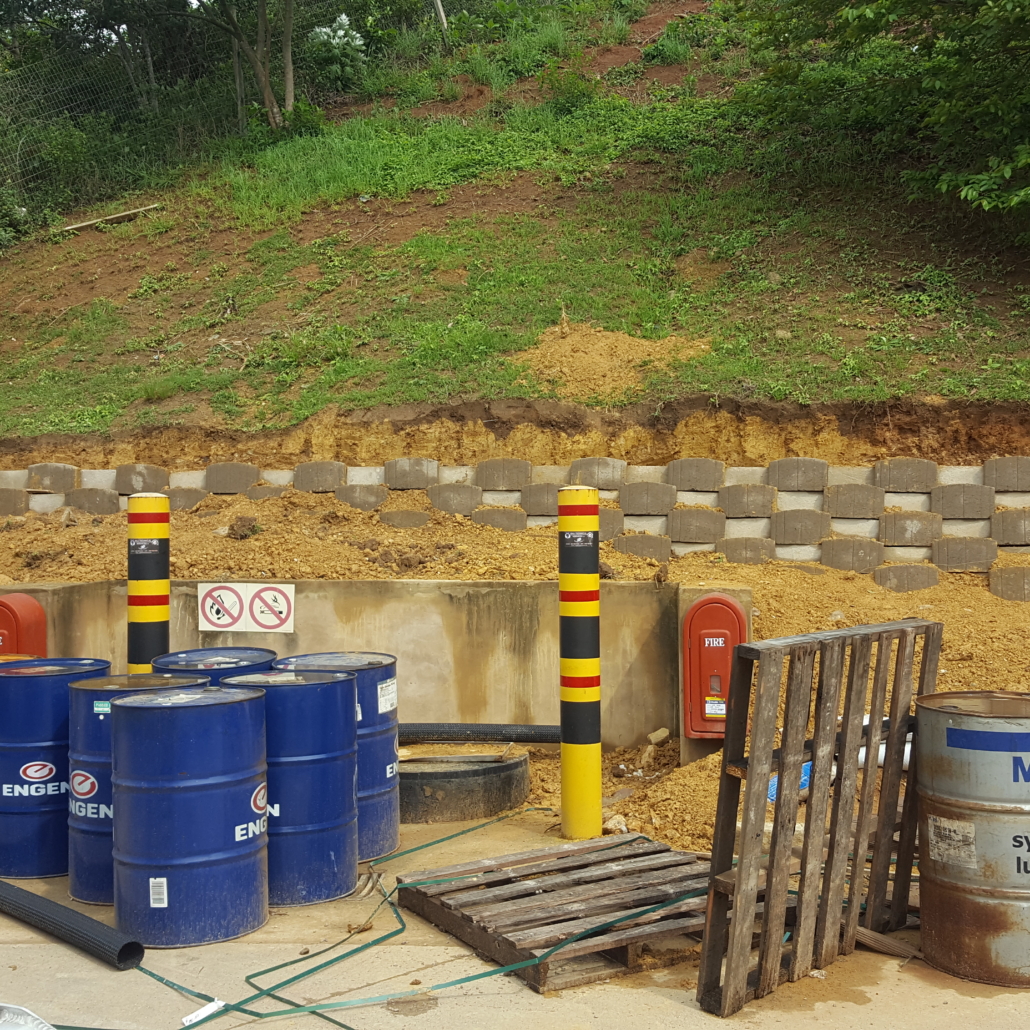

The facility was used for queuing Fuel Tanker Trucks. Mobile Phones were strictly not allowed.

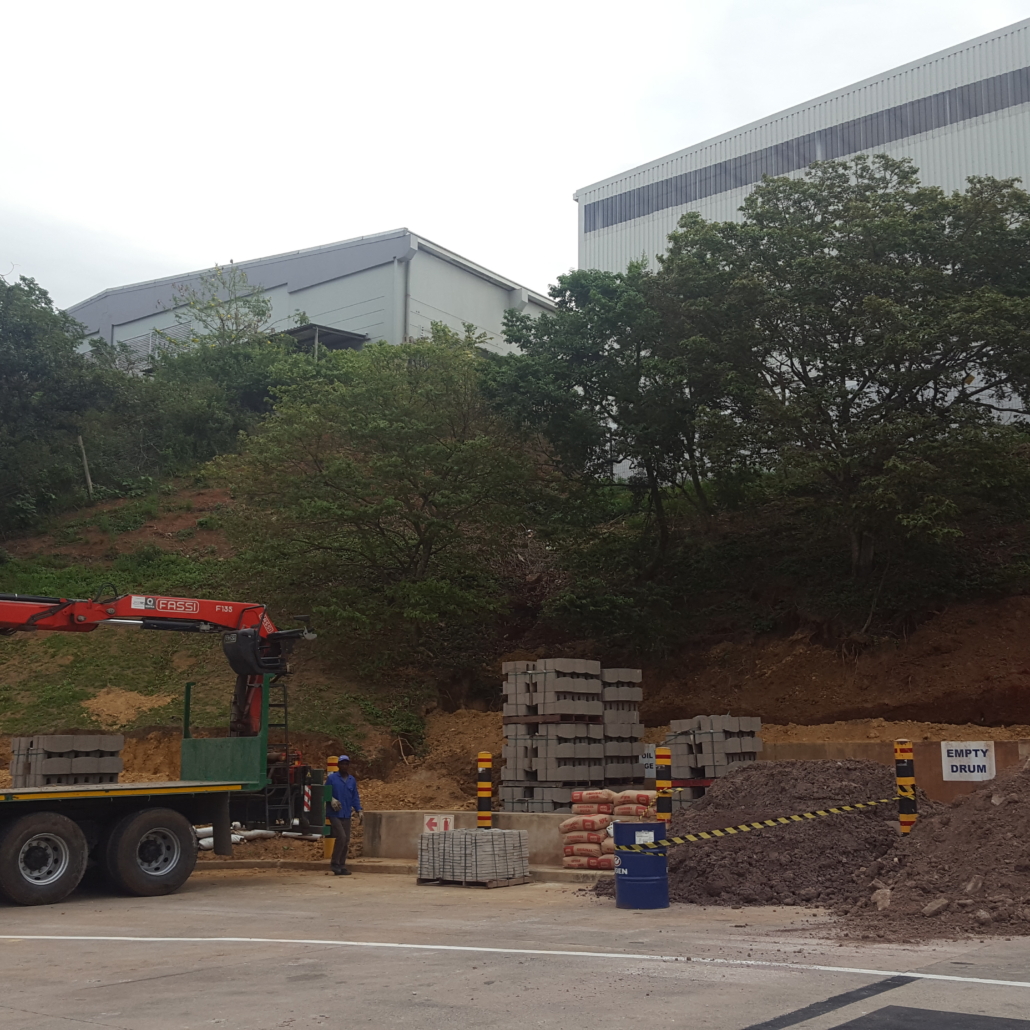

Delivery of materials to site.
Smaller Available space for Materials. Orders would be offloaded quite a low way from the wall As a result, the logistics, costs and efficiencies involved in coordinating deliveries at the site at regular intervals in volumes that could be easily managed and processed—to best suit the installation team—was another challenge.

Deliveries were decreased , meaning the deliveries could be made more efficiently to handle onsite , rather partially-full loads than full.
